Fold-Down Safety Bollard - 4.5 x 36"

Control vehicle access near facilities and park entrances.
  • Easy fold-down hinge and integrated lock.
  • 11-gauge steel construction with cast steel base.
  • Top-mounted eyelet for use with safety chains or ropes.
  • Includes 2 keys.
  • Concrete Installation Kit available.
MODEL
NO.		 DIAM. RAISED
HEIGHT		 COLLAPSED
HEIGHT		 MOUNTING
PLATE DIM.		 WT.
(LBS.)		 PRICE EACH IN STOCK
SHIPS TODAY
1 2+
H-7171 4.5" 36" 5" 8 1/2 x 8 1/2" 25 $130 $125  ADD
SHIPS VIA UPS
DIMENSIONS:
  • Bollard Height to Top of Ring: 38 3/4"
  • Reflective Stripes (Height): 4"
  • Mounting Plate:
    • Actual: 8 1/2 x 8 3/4"
    • Hole Diameter: 9/16"
  • Top Ring:
    • Height: 2"
    • Hole Diameter: 1 1/8"
THICKNESS:
  • Mounting Plate: 1/4"
FEATURES:
  • Powder coated
  • Keyed alike
USAGE:
  • Not impact tested or rated.
Availability: In Stock
Unit Weight: 27 lbs.
Instructions
Email Item
SPECIFICATIONSMETRICIMPERIAL
DIAMETER114 mm4.5"
RAISED HEIGHT91 cm36"
COLLAPSED HEIGHT13 cm5"
MOUNTING PLATE DIMENSIONS22 x 22 cm8 1/2 X 8 1/2"
WEIGHT11 kg25 lbs.
Availability: In Stock
Unit Weight: 27 lbs.
Instructions
Email Item
PARTS:
  • H-3722 Concrete Installation Kit for Rack Protectors and Pallet Racks
  • H-7172-LOCK Lock Cylinder and Keys for Fold-Down Safety Bollards

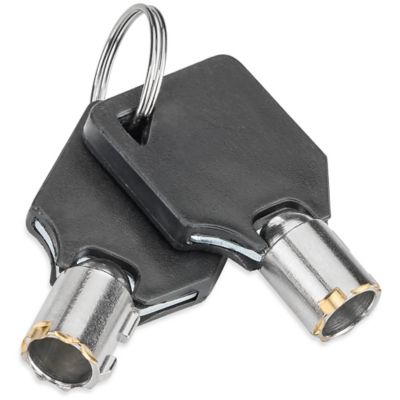

  • H-7173 Keys for Fold-Down Safety Bollards
