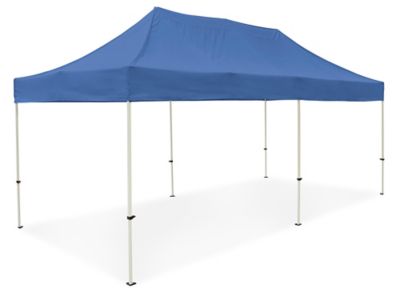

Aluminum Frame Canopy - 10 x 20', Blue

Provide instant shade and shelter. Sets up in minutes.
  • Temporary shade for tailgating and picnics.
  • Polyester covers are flame, UV and water resistant.
  • Stakes anchor to the ground for added stability.
  • 5 height adjustments.
  • Conveniently store in bag with wheels.
  • Optional Side Walls and Canopy Weights, sold separately.

Information Option is unavailable; the next option is selected
Specify Color:
MODEL
NO.		 DESCRIPTION SIZE
L x W		 MAX. SIDE
HEIGHT		 PEAK
HEIGHT		 COVER
DENIER		 WT.
(LBS.)		 PRICE EACH COLOR IN STOCK
SHIPS TODAY
1 3+
H-7265BLU Aluminum Frame 10 x 20' 7' 10' 500 85 $515 $485  ADD
SHIPS VIA MOTOR FREIGHT
DIMENSIONS:
  • Actual: 116 x 232" (L x W)
  • Actual Maximum Peak Height: 112"
  • Actual Maximum Side Height: 80"
  • Minimum Side Height: 6' 2"
  • Diameter:
    • Upper Leg: 1 5/16"
    • Lower Leg: 1 1/8"
    • Trusses: 1 1/16 x 1/2"
  • Bag: 64 x 16 x 9 1/2" (L x W x H)
  • Bag Pocket: 39 x 16 x 3" (L x W x D)
THICKNESS:
  • Legs: 1.4 mm, 17 gauge
  • Trusses: 1.2 mm, 18 gauge
MATERIAL:
  • Bag: 600 Denier Polyester
INCLUDES:
  • Frame
  • Canopy Top
  • Bag with Wheels
  • (4) Anchoring Stakes
SPECIFICATIONS:
  • Meets:
    • CPAI 84 FR6 Requirements
    • NFPA 701 Requirements
  • Not tested to meet ULC S109
Ships Via Motor Freight
Availability: In Stock
Unit Weight: 89 lbs.
Instructions
Parts Diagram
Test Report
Catalog Page 427
Email Item
SPECIFICATIONSMETRICIMPERIAL
SIZE L x W305 x 610 cm10 x 20'
MAX SIDE HEIGHT213 cm7'
PEAK HEIGHT3 M10'
WEIGHT39 kg85 lbs.
Ships Via Motor Freight
Availability: In Stock
Unit Weight: 89 lbs.
Instructions
Parts Diagram
Test Report
Catalog Page 427
Email Item
ACCESSORIES:

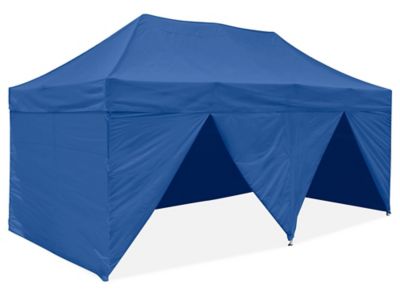

  • H-7267BLU Side Walls for Instant Canopy - 10 x 20', Solid, Blue
PARTS:
  • H-2675-HDWRQ Truss Connectors for Aluminum Frame Instant Canopies
  • H-2675-LGADJ Leg Height Adjuster for Instant Canopy
  • H-6547-FRAME Aluminum Frame for Instant Canopies - 10 x 20'
  • H-7265-BAG Roller Bag for Instant Canopies - 16 x 8 1/2 x 62"
  • H-8015 Canopy Weight Discs - Set of 4
  • H-9104 Canopy Top for Instant Canopy - 10 x 20', Blue
  • H-9109 Canopy Weight Bags - Set of 4
