Big Joe^® Battery Powered Pallet Truck - 45 x 27"

Dock worker's best friend. Powered navigation for small warehouses, limited stock areas and retail floors.

Quick-change battery reduces downtime. Lithium ion lasts 4 times longer than traditional batteries.
Push-button lift control and forward/reverse thumb wheels on handle.
3 hours service per charge. 2½ hour charge time.
Polyurethane wheels.
185° steering arc.
3" lowered and 7½" raised height.
No more down time. Additional Replacement Battery available.

MODEL NO.	FORK SIZE L x W	LOAD CAPACITY	RECHARGEABLE BATTERY	DRIVE MOTOR	WHEEL DIAMETER	WT. (LBS.)	PRICE EACH	IN STOCK SHIPS TODAY
H-7505	45 x 27"	2,600 lbs.	20 Ah	.65 kw DC	8" / 2 3/4"	288	$2,935	ADD

Includes one lithium ion battery and charger

SHIPS ASSEMBLED VIA MOTOR FREIGHT

DIMENSIONS:

Overall: 60 1/2 x 46" (L x H)
Forks:
- Actual: 45 1/4 x 27"
- Width: 5 9/10"
- Thickness: 2.02"
- Distance Between Forks (Inside): 15 1/5"

FEATURES:

USAGE:

Caution: Excessive force to backplate may damage battery or battery cradle.
Charging the Battery:
- To avoid permanent damage to the battery, do not run charge down completely.
- When installing a new battery from the factory, fully charge it before initial use.
- Fully charge every 60 - 90 days when not in use.
- Use charger supplied with unit.
  - Charger plugs into standard 120 V outlet.
- Hours of service per charge is based on continuous use.
Battery Storage and Handling:
- Store and charge in a dry, well-ventilated area within appropriate temperature range.
  - Storage: 32° - 104° F
  - Charging: 41° - 104° F
- Check battery for leakage and mechanical damage before use and charging.
- Keep battery terminals covered when not in use.
- If battery is dropped, inspect carefully for damage.
Disposal of Battery:
- Battery should be completely discharged prior to disposal.
- Recycling options may be available through a local, licensed waste carrier.
- Disposal should be performed according to Federal, State and Local requirements of hazardous waste treatment.
LED light on the outside of the charger frame shows battery charge status.
- Red: Charging
- Green: Fully charged
- Yellow: Battery fault
- Yellow Flash: Charger fault

SPECIFICATIONS:

SHIPPING:

WARRANTY:

UP TO 6 MONTHS:
- Repair: Parts & labor covered.
- Excludes: Wheels, axles, bushings and battery
6 MONTHS - 1 YEAR:
- Repair: Parts covered.
- Excludes: Wheels, axles, bushings and battery
1 YEAR PLUS:
- Repair: Customer responsible for all charges.

Ships Via Motor Freight

Availability: In Stock

Unit Weight: 330 lbs.

Ships Via Motor Freight

Availability: In Stock

Unit Weight: 330 lbs.

PARTS:
Frequently Purchased:

H-7506 Replacement Lithium Ion Battery for Big Joe® Battery Powered Pallet Truck

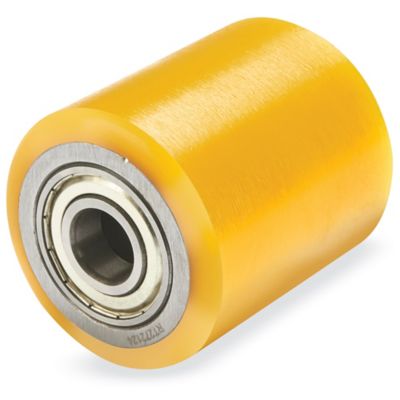

H-4709LASSY Load Wheel Assembly for Electric Pallet Trucks

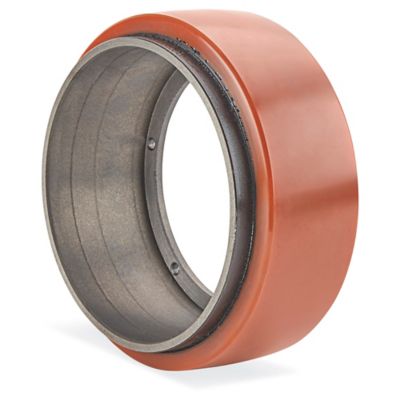

H-4709-DW2 Drive Wheel for Uline Pallet Trucks

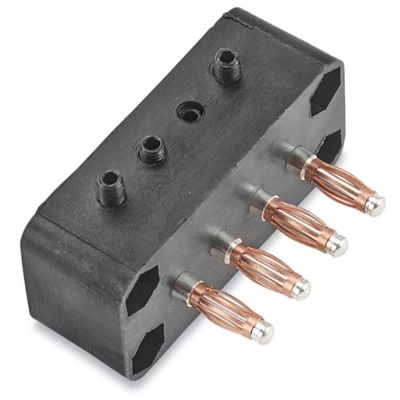

H-7505-4PBA 4-Pin Bracket Assembly for Battery Powered Pallet Truck
H-7505-2PBA 2-Pin Bracket Assembly for Battery Powered Pallet Truck

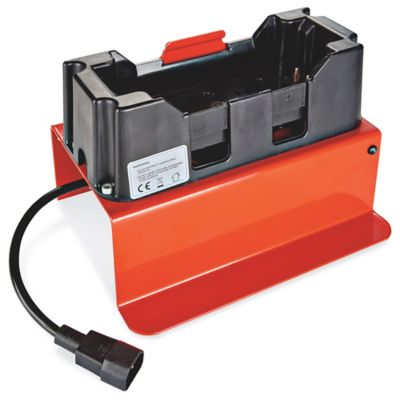

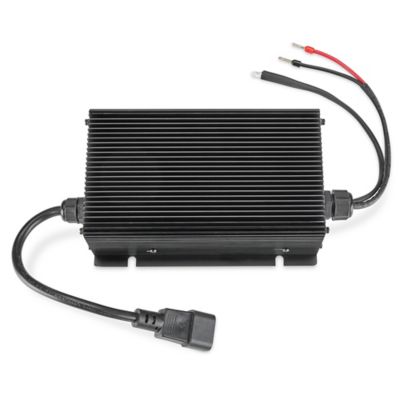

H-7505-CHGRA Charger Assembly for Battery Powered Pallet Truck
