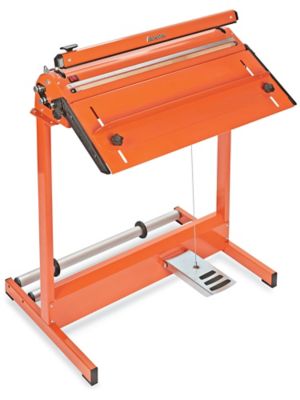

Deluxe Foot-Operated Impulse Sealer with Cutter - 16"

Ideal for high-volume poly tubing and bag sealing. Built-in cutter. Features the latest European technology.
  • Variable timer control lets you seal all types of plastic films up to 16" wide and 8 mil thickness.
  • Seals and trims poly tubing in one step.
  • Safe, smooth operation. Less wiring and no microswitch.
  • Foot pedal operation.
  • 110 volts.
  • Replacement Blades and Service Kit with replacement heating element available.
MODEL
NO.		 SEAL
L x W		 OVERALL DIMS
L x W x H		 MAX. SEAL
THICKNESS		 SHPG.
LBS.		 PRICE
EACH		 IN STOCK
SHIPS TODAY
H-7593 16 x 3/16" 25 x 26 x 44" 8 mil 62 $1,275  ADD
SHIPS ASSEMBLED VIA MOTOR FREIGHT
DIMENSIONS:
  • Overall: 24 1/2 x 25 1/2 x 43 1/2" (L x W x H)
MATERIAL:
  • Body: Aluminum
TEMPERATURE:
  • 212° - 320° F
COMPATIBILITY:
  • Cannot Seal: Vinyl Bags
  • Can Seal:
    • Bags up to 8 mil.
    • Up to 1/8" thick foam.
MylarPolypropylene
NylonPolyurethane
Metalized Food Bags (Up to 2.5 mil)PVC
PolyethyleneStatic Shielding
No Airtight Seal:
3/16" and 5/16" Bubble
FEATURES:
  • Cuts 1/4" above the seal.
USAGE:
  • Approximately 300 seals per hour.
PACKAGING:
  • Cutter may have a wax coating that needs to be removed before use.
Ships Via Motor Freight
Availability: In Stock
Unit Weight: 86 lbs.
Instructions
Parts Diagram
Catalog Page 154
Email Item
SPECIFICATIONSMETRICIMPERIAL
SEAL L x W41 x .5 cm16 x 3/16"
OVERALL DIM L x W x H64 x 66 x 112 cm25 x 26 x 44"
MAX. SEAL THICKNESS203 Micron8 mil
SHIPPING WEIGHT28 kg62 lbs.
Ships Via Motor Freight
Availability: In Stock
Unit Weight: 86 lbs.
Instructions
Parts Diagram
Catalog Page 154
Email Item
PARTS:
  • H-2065C Blades for Deluxe Impulse Sealers with Cutter
  • H-7596 16" Service Kit for H-7593 Deluxe Foot-Operated Impulse Sealer with Cutter

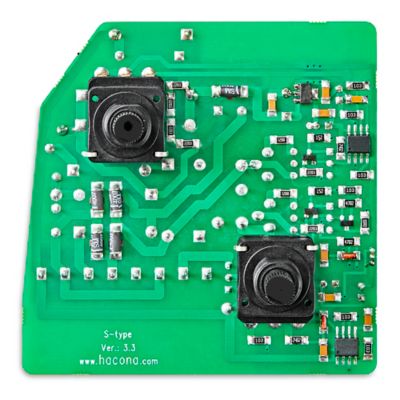

  • H-8119 Control Panel Timer for Deluxe Foot-Operated Impulse Sealers
