Compact Auto Floor Scrubber - 20"

Suck up dirty water as you scrub. Keep basement floors shiny.
  • Cordless. Fold-down handles for compact storage.
  • 10" non-marking polyurethane rear wheels.
  • Includes two 12V AGM batteries and on-board battery charger.
  • Battery provides up to 120 minutes of operation.
  • 11-gallon solution tank. 12-gallon recovery tank.

    Includes:
    • (1) 20" Soft nylon scrubbing brush
    • (1) 28" Squeegee assembly
1 YEAR WARRANTY
MODEL
NO.		 DESCRIPTION SIZE
W x L x H		 DIAMETER RPMs PRICE
EACH		 IN STOCK
SHIPS TODAY
H-9424 Floor Scrubber 32 x 43 x 51" 20" 160 $5,595  ADD
SHIPS VIA MOTOR FREIGHT
DIMENSIONS:
  • Height (Handle Folded Down): 32"
  • Squeegees:
    • Front and Rear: 32" x 3 mm
  • Bristle Diameter:
    • Inner: 6.5 mm
    • Outer: .03 mm
  • Battery: 10.3 x 6.8 x 8.2"
  • Charging Cord: 6 1/2'
    • Gauge: 18AWG
MATERIAL:
  • Tank: Polyethylene
  • Squeegees: Latex
    • Not oil resistant.
NOT INCLUDED:
INSTRUCTIONS:
  • Use only a low-foaming floor cleaner within a pH range of 7 - 11.
  • Floor cleaner should be formulated specifically for use in auto scrubbers.
  • Not recommended for use with bleach.
  • Do not use powdered detergents.
USAGE:
  • Recommended Cleaning Area: Up to 24,000 square feet
  • Can be used on epoxy, VCT and sealed smooth concrete.
  • Not recommended for rubber or wood floors.
  • Batteries:
    • Two batteries are needed to run the auto scrubber.
    • Charging is required after every use.
      • For optimal battery life, leave plugged in when not in use.
    • The batteries are rated for 400 charging cycles.
    • Run Time per Charge: Up to 120 minutes
      • Constant starting and stopping may shorten run time.
      • Run time and battery life can vary depending on usage and maintenance.
SPECIFICATIONS:
  • Noise Level: 70 dBA
  • Brush:
    • Motor: 1/2 HP
    • Speed: 160 RPM
  • Vacuum Motor: 3/4 HP, 3-Stage
  • Turning Radius: 67"
PARTS:

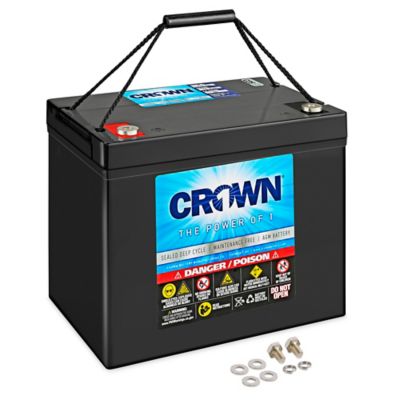

  • Replacement Battery: H-9425
VIDEO:
Ships Via Motor Freight
Availability: In Stock
Unit Weight: 216 lbs.
Instructions
SDS Sheet
Parts Diagram
Troubleshooting
Routine Maintenance
Catalog Page 353
Email Item
SPECIFICATIONSMETRICIMPERIAL
SIZE W x L x H81 x 109 x 130 cm32 x 43 x 51"
DIAMETER51 cm20"
Ships Via Motor Freight
Availability: In Stock
Unit Weight: 216 lbs.
Instructions
SDS Sheet
Parts Diagram
Troubleshooting
Routine Maintenance
Catalog Page 353
Email Item
PARTS:
  • H-8041-CHRGC Charging Cord for Compact Auto Floor Scrubbers - 6 1/2'
  • H-8699 Recovery Tank Cover Assembly for Compact Auto Floor Scrubbers

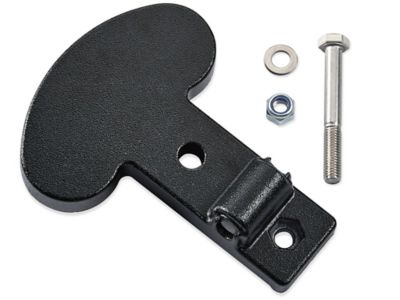

  • H-9424-SSK Support Squeege Kit for Compact Auto Floor Scrubber

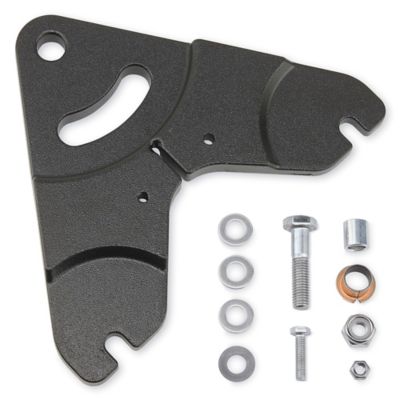

  • H-9424-SSPRT Squeegee Arm Kit for Compact Auto Floor Scrubber
  • H-9424-TRWHL Transport Wheel Assembly for Compact Auto Floor Scrubber
  • H-9427 Front Squeegee Blade for Compact Auto Floor Scrubber - 20"

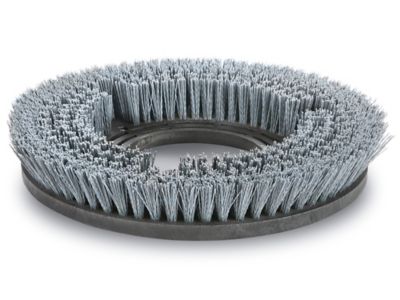

  • H-9428 Grit Brush for 20" Compact Auto Floor Scrubber

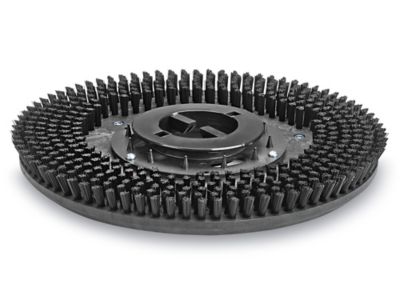

  • H-9429 Pad Driver - 20"
  • H-9430 Rear Squeegee Blade for Compact Auto Floor Scrubber - 20"
  • H-9431 Nylon Brush for 20" Compact Auto Floor Scrubber
  • H-9432 Squeegee Assembly for Compact Auto Floor Scrubber
Unable to find what you're looking for? Please contact us.
