Rotary Drum Pump - Stainless Steel

Simple, one-motion dispensing for quick liquid transfers.
  • For acids, harsh chemicals and fuels.
  • Type 304 stainless steel with PTFE seals.
  • FDA compliant.
MODEL
NO.		 DESCRIPTION FITS
CONTAINER		 FLOW RATE FITS
NECK SIZE		 REACH BELOW
DRUM LID		 WT.
(LBS.)		 PRICE EACH IN STOCK
SHIPS TODAY
1 3+
H-5647 Stainless 15 - 55 Gal. 10 gal./min. 2" 40" 12 $459 $429  ADD
DIMENSIONS:
  • Overall (Length): 53"
  • Suction Tube (Length): 40"
  • Outside (Diameter):
    • Inlet: 1 1/4"
    • Outlet: 3/4"
MATERIAL:
  • Wetted Materials:
    • 304 Stainless Steel
    • PTFE (Polytetrafluorethylene)
      • Note: Always check chemical compatibility of product with wetted materials.
TEMPERATURE:
  • Maximum: 140° F
COMPATIBILITY:
  • Chemical Compatibility: GUIDE
    • Compatible with:
      • Alkaline & flammable liquids if properly grounded for static electricity.
      • Chemicals compatible with Grade 304 Stainless steel & PTFE.
    • Not Compatible:
      • Salt water
      • Sulfuric acid
      • Hydrofluoric acid
      • Hydrochloric acid
      • Bleach
      • Castor oil
  • Drum Openings:
    • Compatible with Fine or NPS threaded openings.

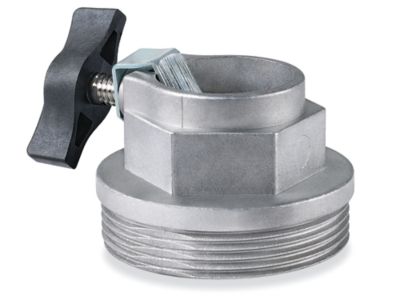

    • Not compatible with Coarse or Buttress threaded openings unless used with a Buttress to Fine thread adapter. (H-3864-CTA)
INCLUDES:
  • PTFE Tape
  • Barb spout
SPECIFICATIONS:
  • Max Viscosity: 1,000 cps
  • Flow: 10 GPM at 135 RPM (8.5 oz./stroke)
Availability: In Stock
Unit Weight: 13 lbs.
Instructions
Parts Diagram
Catalog Page 633
Email Item
SPECIFICATIONSMETRICIMPERIAL
FITS CONTAINER57 - 208 L15 - 55 gal.
FLOW RATE/MINUTE37.9 L/min.10 gal./min.
FITS NECK48 mm2"
REACH BELOW DRUM LID102 cm40"
WEIGHT5 kg12 lbs.
